Specifications
Model:
VL-M50
Type:
V-Lok
Mount Type:
V-Mount
Chemistry:
Lithium-Ion(4.2)
Weight:
300g

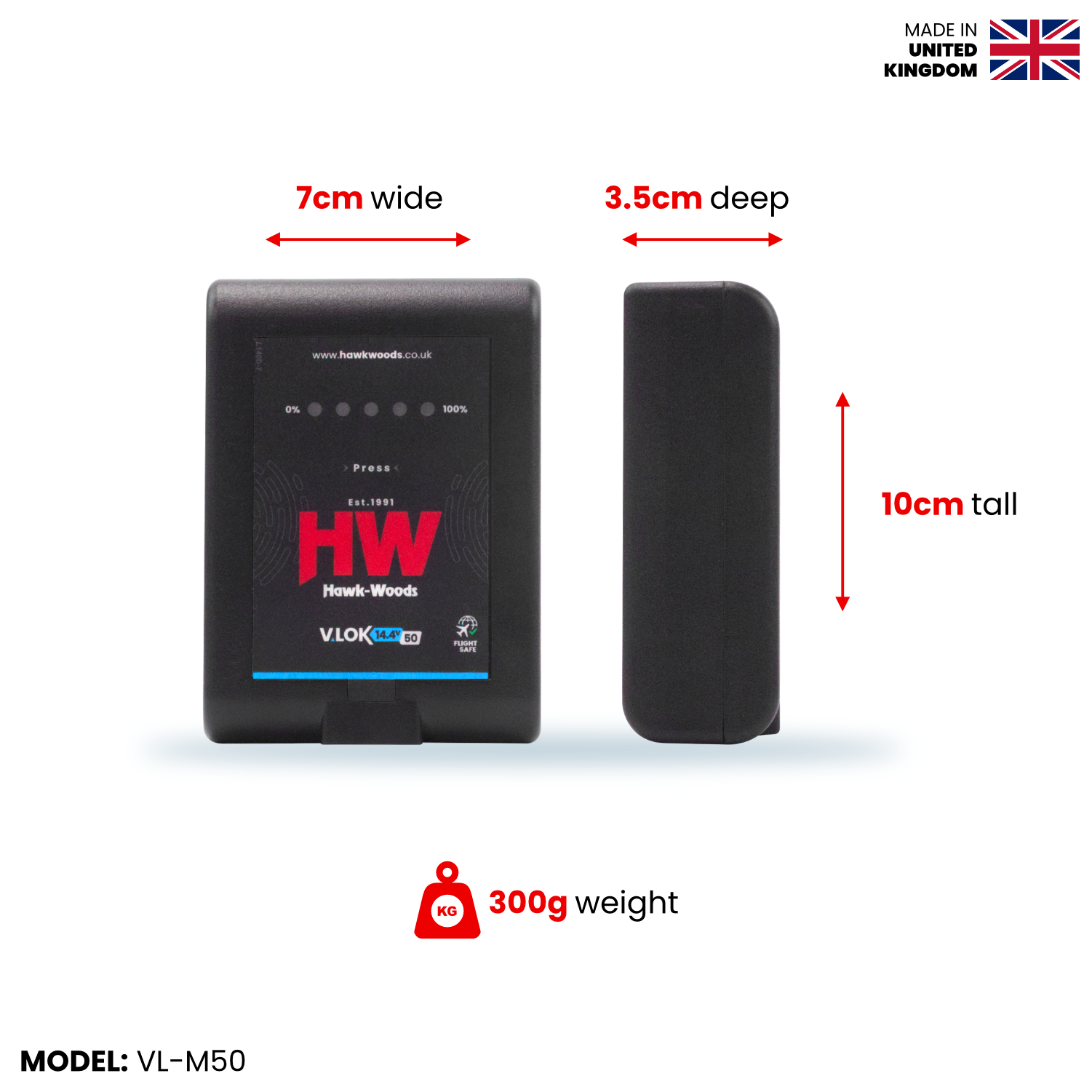

Size:
7 x 10.3 x 3.5 cm
Nominal Voltage:
14.4v
Max Voltage:
16.8v
End Voltage:
11v
Wattage:
50Wh
Capacity:
3.5Ah
Current:
6A
Number of D-Taps:
1
Show more
Downloads
Userguide
Download
UN38.3 Air Certification
DownloadCertificate of Conformity
DownloadMaterial Safety Data Sheet
DownloadSpecification Sheet
Download
High Res. Images
DownloadCSV Spreadsheet
Download
VL-M50

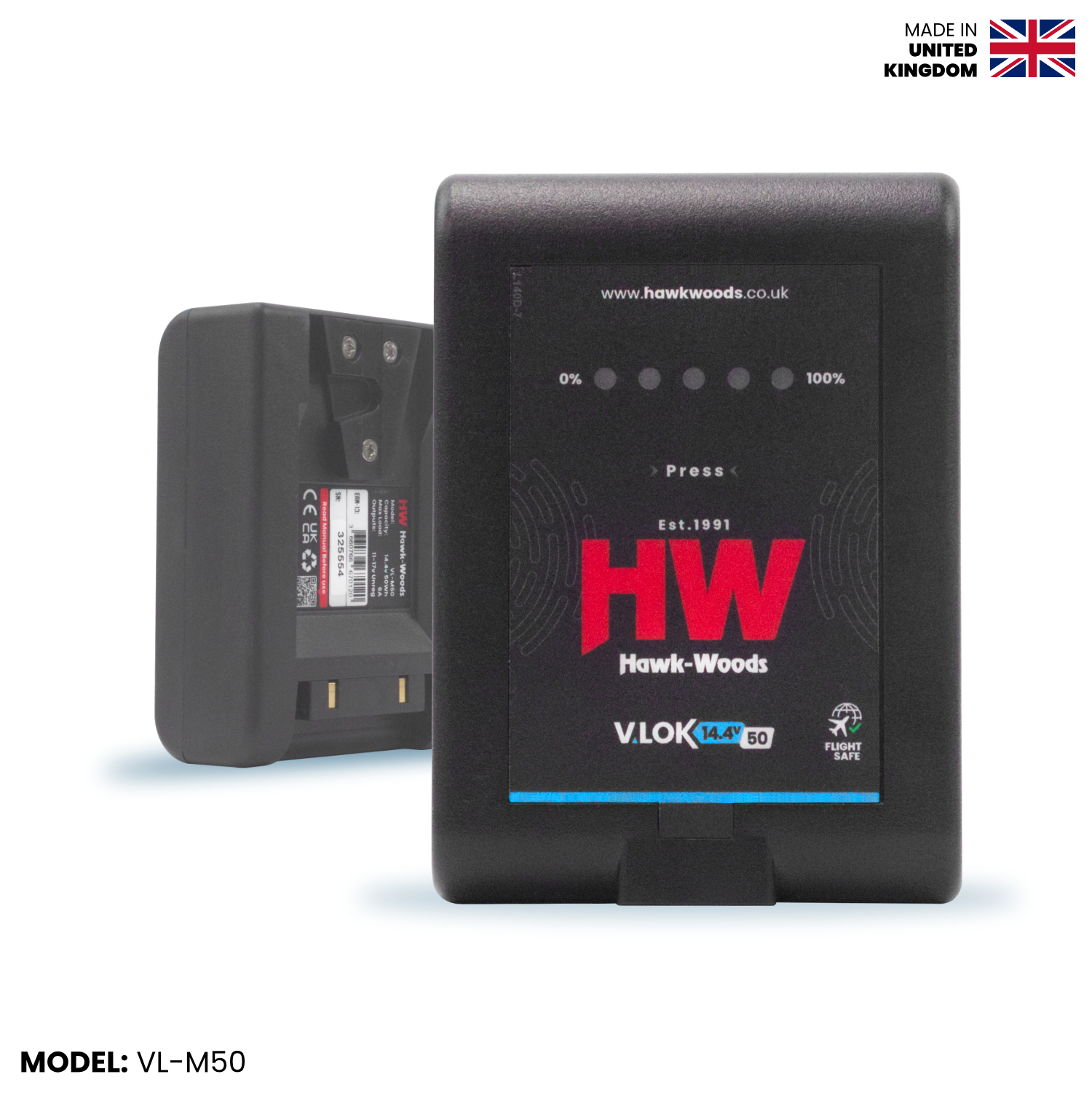

50Wh 14.4V Mini V-Lok (V-mount) Li-Ion Battery
Hawk-Woods 50Wh mini V-lok (V-mount) battery has been added to the mini VL range.
The mini battery system offers all the features of the standard size V-Lok battery in what is to date the smallest V-Lok case. The perfect solution if you want long run times, but want to save on weight and space! The battery is that small, it will fit into the palm of your hand.
This battery is ideal for powering monitors or lower powered equipment, weighing as little as 300g this is a great solution!
When used in conjunction with VL-MCF1, these batteries can be treated similar to a stack system, however without carrying dead weight, Mini VL can be switched and rotated for continuous power, whilst combining the wattage of 2 batteries.
These batteries will work on all existing fittings and chargers. Within the 100Wh bracket, this battery is flight safe for carry-on luggage, volumes are subject to the airline!
Lastly the battery has the benefit of 1x Power-Con output which will provide nominal battery voltage.
Lithium-Ion Battery safety procedures
Storing lithium-ion battery safely is crucial due to the risk of fire and explosion, potential damage from extreme temperatures, mechanical harm, exposure to moisture, unintentional activation, and the need to prolong battery life. Not taking proper care of your battery could also result in loss of warranty due to negligence.
For information regarding storing your batteries, read here:Lithium-ion battery safety procedures
