Specifications
Model:
XB1-520plus
Type:
X-Boxx
Mount Type:
Battery Box
Chemistry:
Lithium-Ion
Weight:
3.94kg
Size:
12 x 21.5 x 12 cm
Nominal Voltage:
14.4v
Wattage:
520Wh
Capacity:
36.0Ah
milliamp Hour:
3600mAh
Number of XLR 4P:
2
Number of USB-C:
1
Show more
Downloads
Specification Sheet
Download
High Res. Images
DownloadCSV Spreadsheet
Download

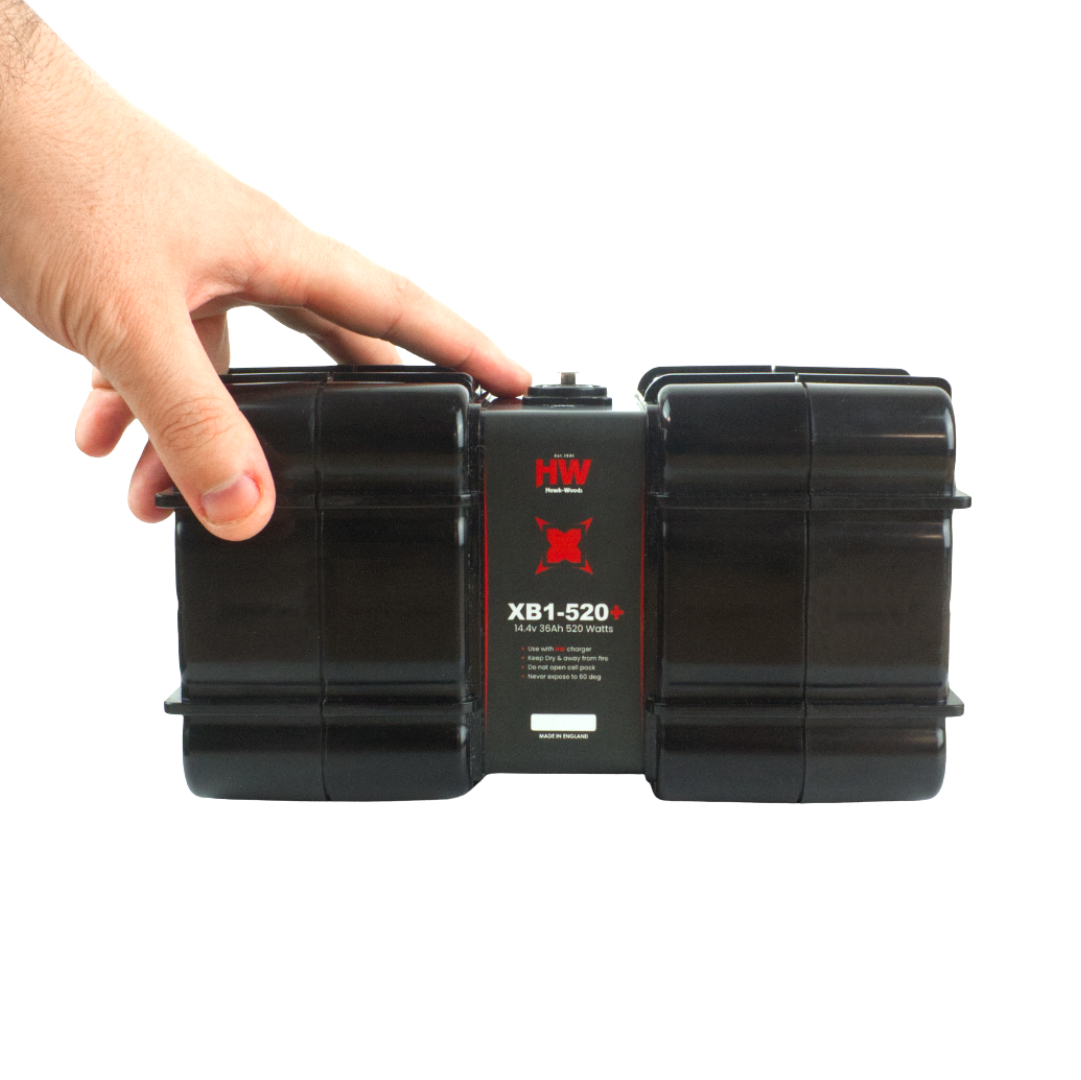

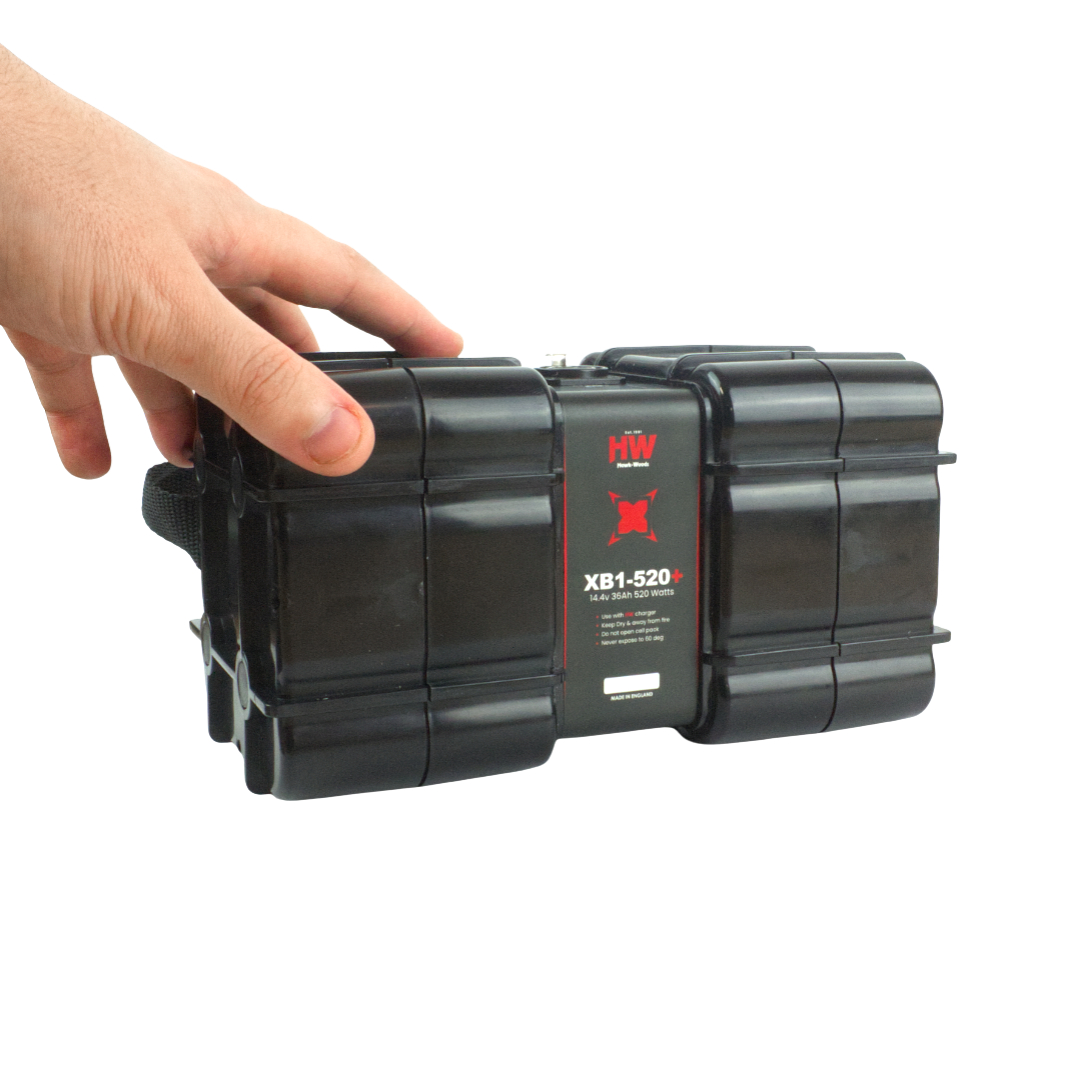

XB1-520plus
14.4v 520Wh Battery Box - XLR 4-pin & USB-C

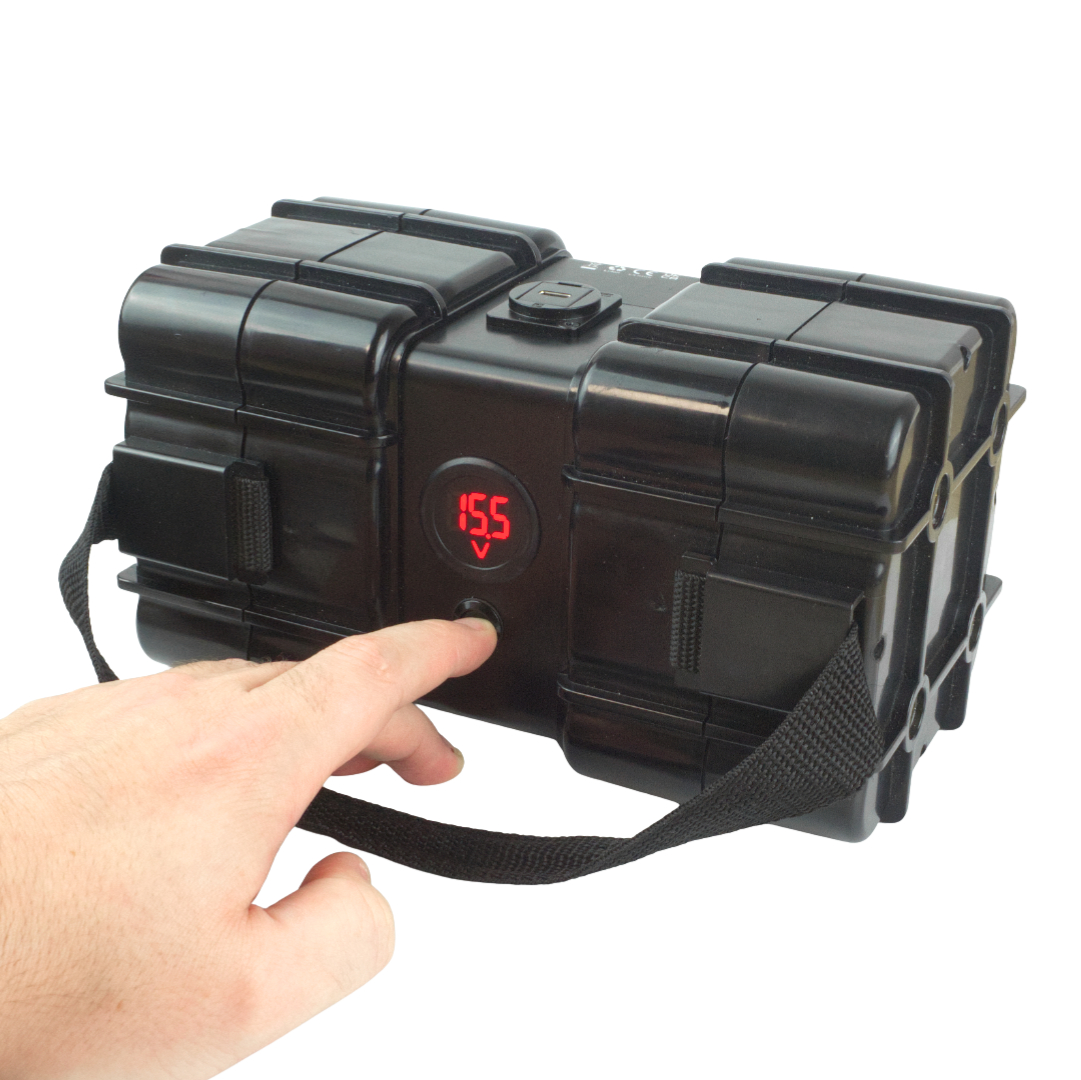

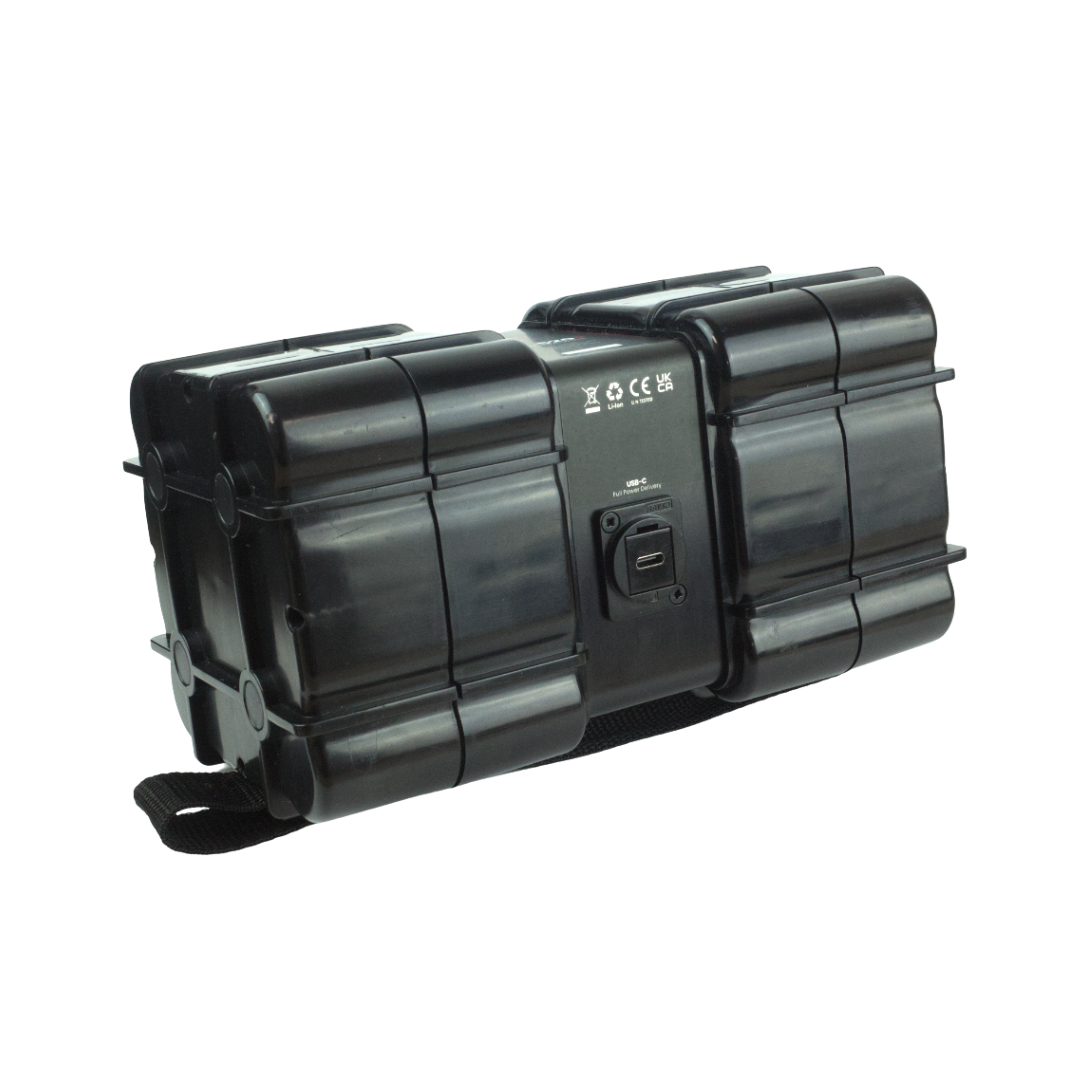

The XB1-520+ is the newest addition to our compact floor battery range. It delivers all the benefits of a traditional battery box, now enhanced with a USB-C output and XLR 4-pin outputs. This battery box also features a digital LCD display.

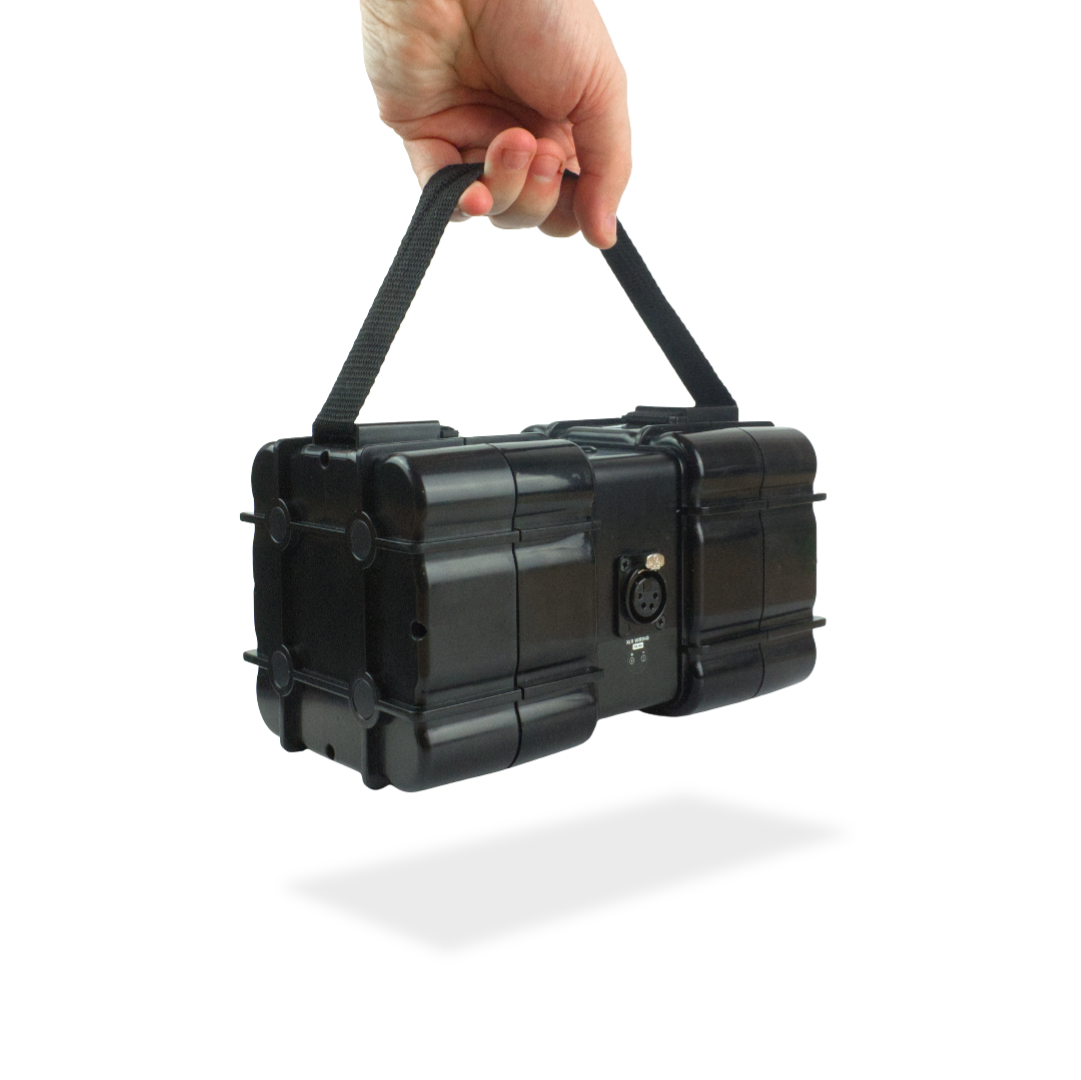

Like earlier models, it features a durable fabric shoulder sling, making it easy to carry or mount securely off the ground. Despite its performance, the XB1-520+ is almost half the weight of comparable battery boxes currently on the market.
Designed to power professional cameras with ease, it can also run most high-capacity lighting equipment, including Tungsten and HMI lamps.
Lithium-Ion Battery safety procedures
Storing lithium-ion battery safely is crucial due to the risk of fire and explosion, potential damage from extreme temperatures, mechanical harm, exposure to moisture, unintentional activation, and the need to prolong battery life. Not taking proper care of your battery could also result in loss of warranty due to negligence.
For information regarding storing your batteries, read here:Lithium-ion battery safety procedures
