Check & Recharge your Lithium-Ion batteries every 6 months if required to avoid shortening their lifespan & voiding warranty
Details
Spec
Downloads
Specifications
Model:
VL-M150D
Type:
V-Lok
Mount Type:
V-Mount
Chemistry:
Lithium-Ion
Weight:
710g
Size:
10 x 7 x 6.6 cm
Nominal Voltage:
14.4v
Wattage:
150Wh
Capacity:
10.4Ah
Current:
12A
Number of D-Taps:
1
Show more
Downloads
CSV Spreadsheet
Download
VL-M150D
14.4V 150Wh Mini V-Lok (V-mount) Data Lithium-Ion battery
50Wh98Wh Data150Wh Data
Compare All

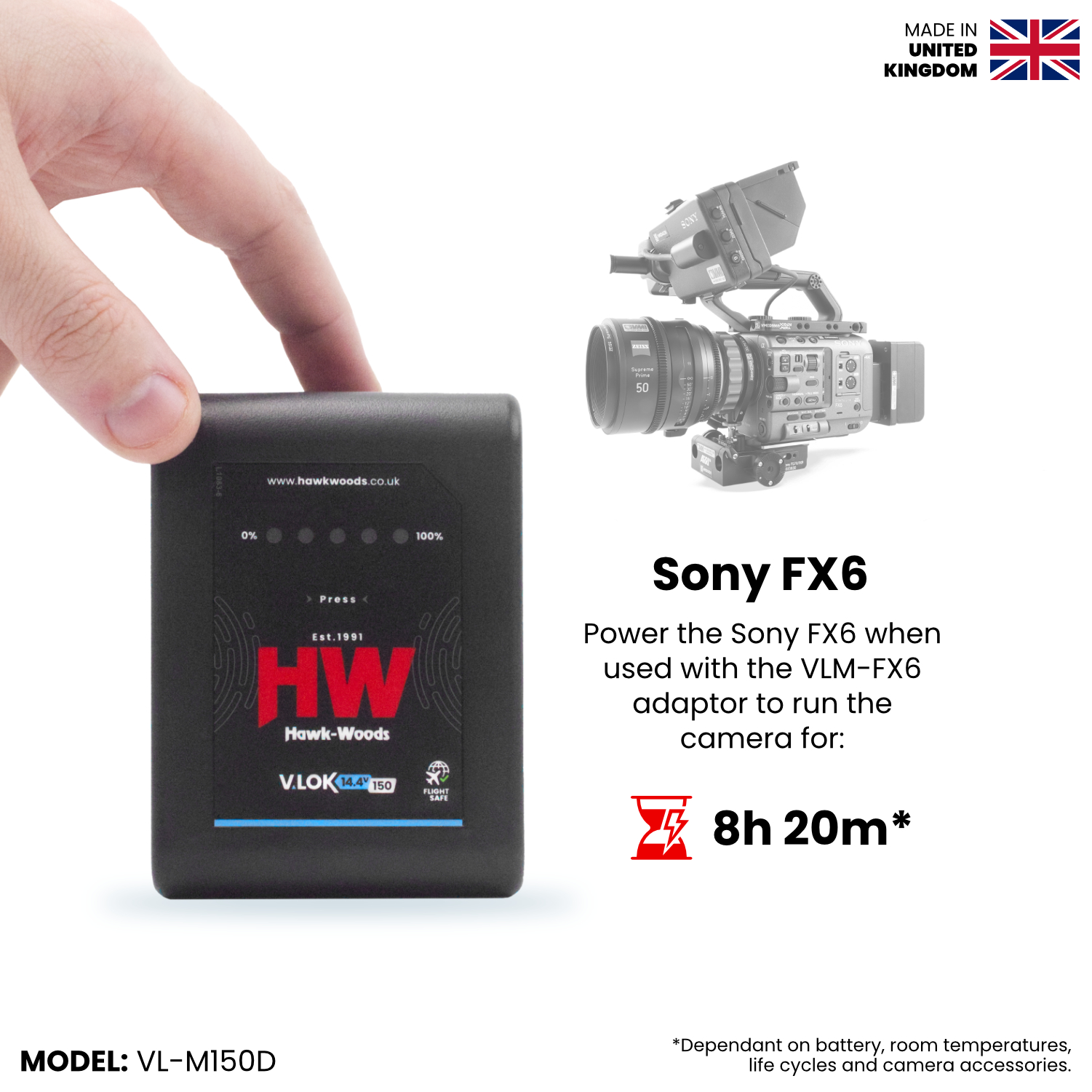

VL-M150D
Hawk-Woods 150Wh Mini V-Lok (V-mount) Data is the first to be added to the Mini V-Lok Data range.
The mini battery system offers all the features of the standard size V-Lok battery in a small, lightweight V-Lok case. This is the perfect solution if you want long run times but want to save on weight and space!

This particular D version has an auto resetting PCM meaning if the battery were to shut down and go into protection mode there is no need to attach it to a charger to reset the board as it does this automatically. This is perfect for shooting in the field where a charger isn't always accessible.

It also has a SMBUS communication system which is compatible with RED cameras and any equipment that uses SMBUS. This system will allow the user to easily view the batteries power percentage on the display of the equipment they are using, this intelligent software will also give a time remaining for a more accurate battery charge level.

These batteries will work on all existing fittings and chargers.

Within the 100Wh - 160Wh bracket, this battery is flight safe for carry-on luggage and a maximum of two can be carried giving 300Wh of travelling power. Built in fuel gauge, thermal protection, short circuit protection, discharge and voltage protection are all still features. Lastly the battery has the benefit of 1 x Power-Con output which will provide nominal battery voltage.
Lithium-Ion Battery safety procedures

Storing lithium-ion battery safely is crucial due to the risk of fire and explosion, potential damage from extreme temperatures, mechanical harm, exposure to moisture, unintentional activation, and the need to prolong battery life. Not taking proper care of your battery could also result in loss of warranty due to negligence.

For information regarding storing your batteries, read here:
Lithium-ion battery safety procedures
