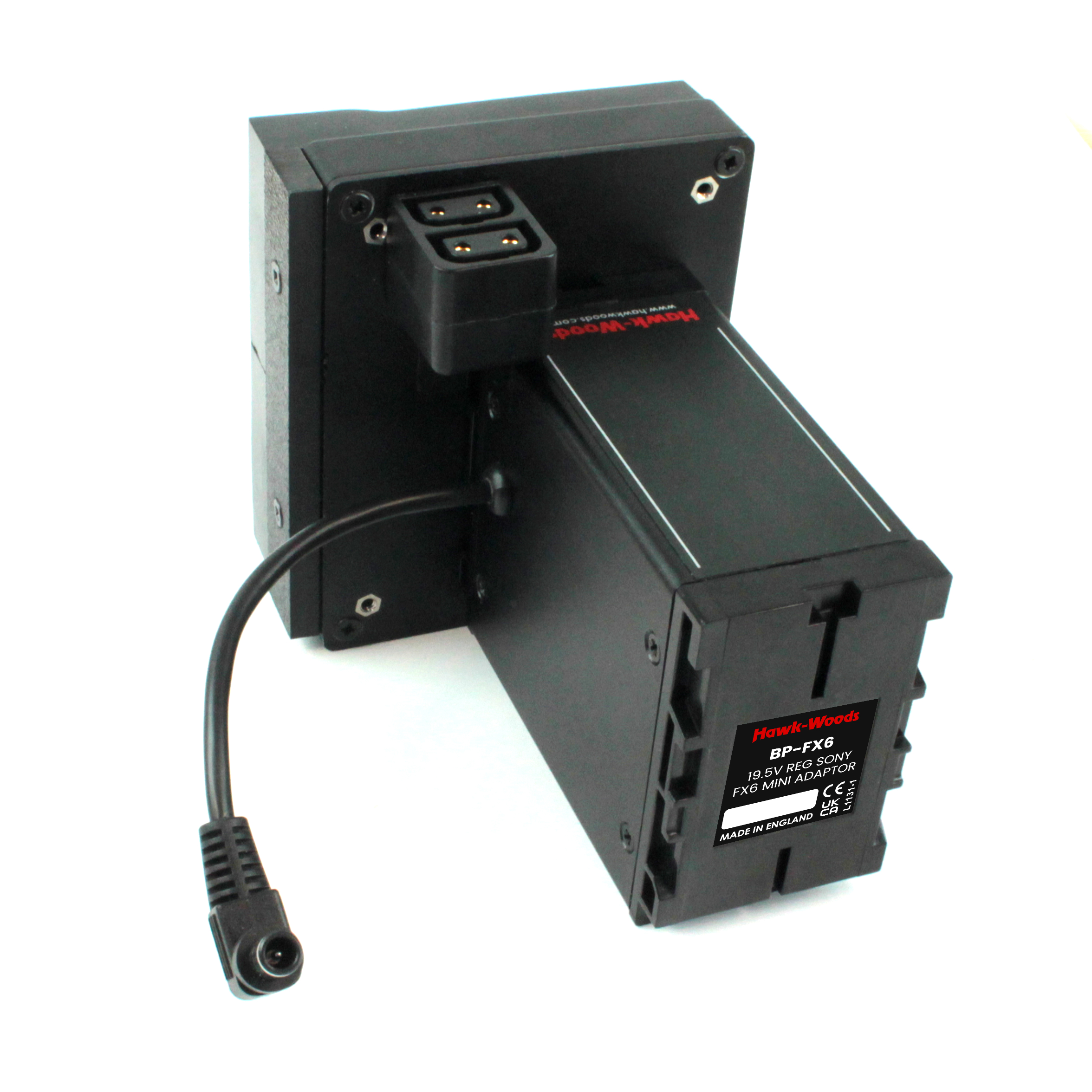

Introducing the Mini BPU camera mount plate for the Sony FX6

The BP-FX6 plate fits directly into the original battery port of the Sony FX6 via a mechanical BP-U battery fitting, allowing up to 2x BP-U batteries to be attached simultaneously for hot-swappable power and increased capacity.

The camera is powered via the supplied fixed Sony flying lead, which is regulated to 19.5 volts to meet the FX6’s DC input requirements.

Key Features:

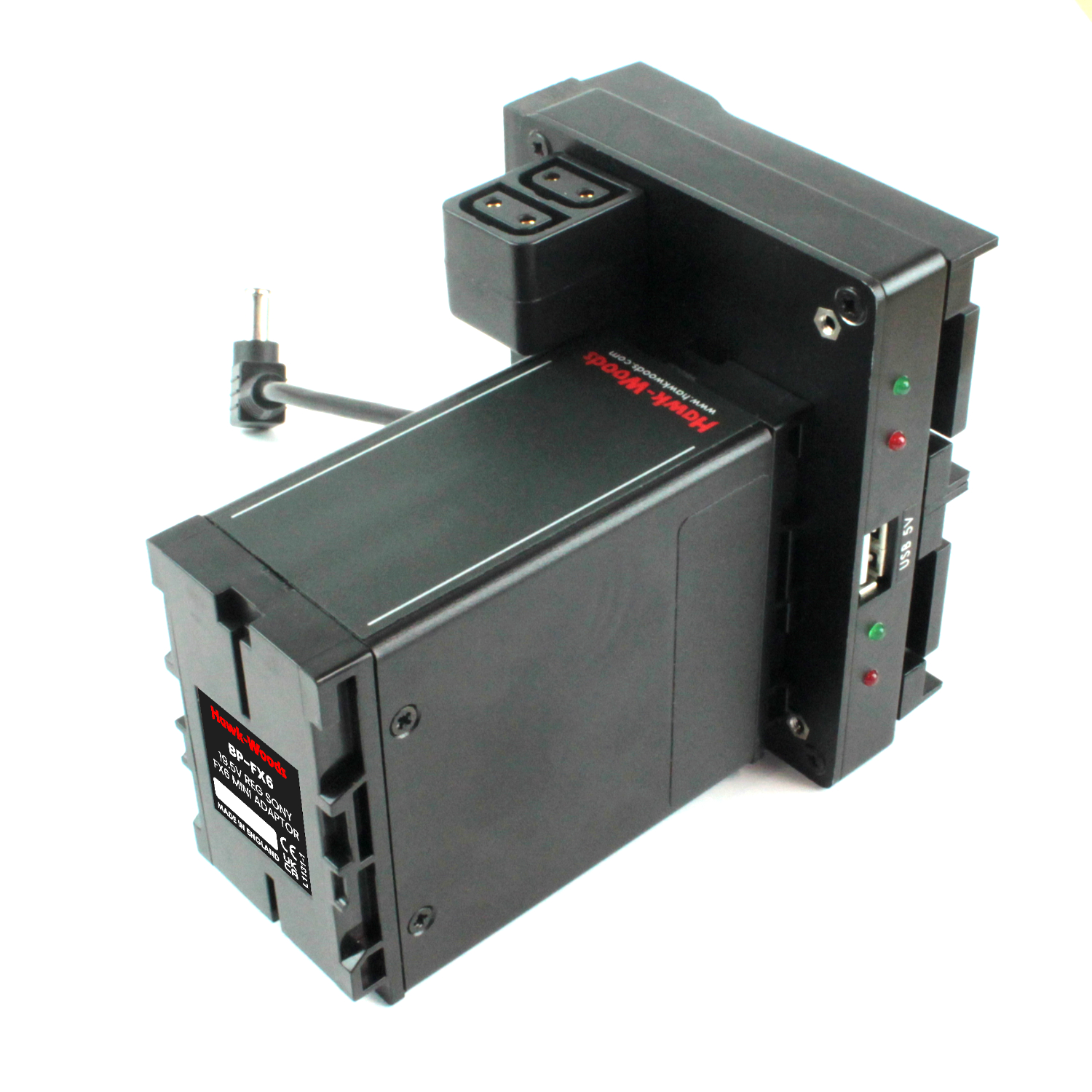

D-Tap Output: 2x D-Tap outputs are provided, delivering unregulated (11-17v nominal) battery voltage for powering accessories.

USB-A Output: 1x USB-A output is located on the side of the unit and is regulated at 5V.

FX6 Ready: Supplied with a 90cm flying DC lead regulated to match the camera’s required input voltage of 19.5V.

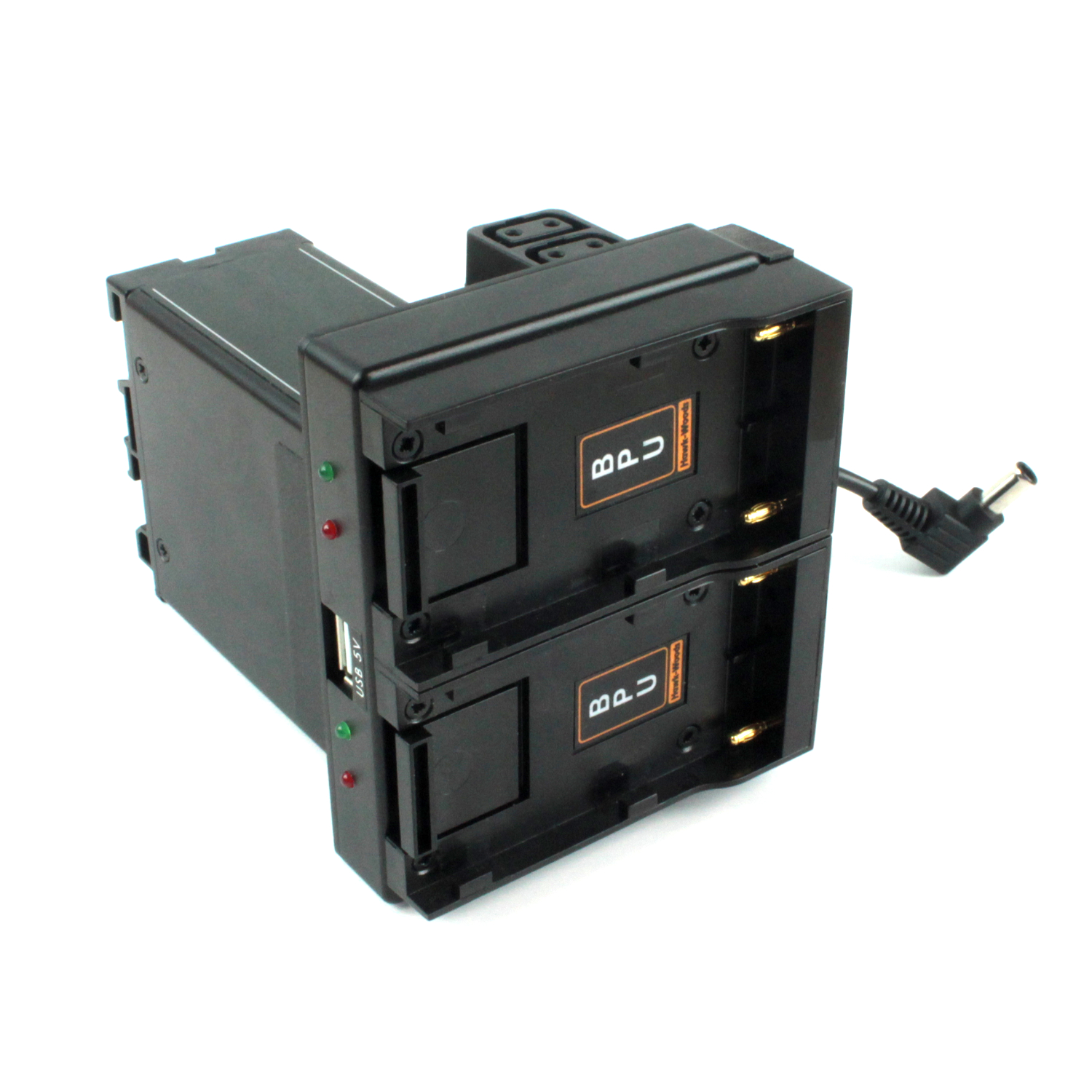

Hot-swap power: Fitted with 2x BP-U battery fittings, the BP-FX6 adaptor combines capacity from both batteries to extend runtime. Each fitting features an LED status indicator to show when it is safe to remove a battery without interrupting power:
– Green LED: Safe to remove the battery with no power interruption
– Red LED: Battery should be replaced — prepare a fresh battery before removal

If you are wanting to power the FX6 using V-Lok battery power please see VLM-FX6.
